Structural Design
Structural Design &Analysis
We analyse and design RCC and steel structures, with calculations and drawings, for contractors, developers and consultants in Qatar, Saudi Arabia, the UAE, Oman and India.
What we deliver
Every deliverable, clearly scoped
RCC building design
Slabs, beams, columns, walls and cores designed for low-rise to high-rise buildings.
Steel structure design
Portal frames, trusses, mezzanines and multi-storey steel frames, with member and stability checks.
Foundation design
Isolated, combined, raft and pile foundations designed from soil data and column loads.
Load calculations
Dead, live, wind and seismic loads, taken down through the structure to the foundations.
Structural analysis
3D models in ETABS, SAFE and STAAD.Pro, with checks on drift, deflection and stability.
Design calculations and reports
Clear calculation packages and design basis reports, ready for consultant and authority review.
Structural drawings
General arrangement, reinforcement details and sections, drawn from the approved design.
Value-engineered systems
Optimised sections, spans and slab systems that reduce concrete, steel and rebar without losing safety.
Retrofit and strengthening
Checks on existing structures and strengthening design for added loads or a change of use.
Steel connection design
Bolted and welded connections, base plates and anchor bolts, designed and detailed for fabrication.
Basements and retaining walls
Basement walls, retaining walls and water tanks designed for earth and water pressure.
Revit and Tekla models
Structural models that carry design intent into coordination, shop drawings and fabrication.
Load path
How a building carries its weight
Every load finds its way to the ground along the stiffest route. Follow one from the roof slab, through the frame and the footings, into the soil.
Slab
Collects dead load (self-weight, finishes) and live load (people, use).
Beams
Carry the slab load sideways, in bending, to the columns.
Columns
Carry it down storey by storey, collecting more at every floor.
Foundations
Spread the column load over an area the soil can carry.
Soil
Takes it as a pressure bulb that fades with depth.
Standards by region
Local codes, international standards
- Qatar
- QCS (Qatar Construction Specifications)
- Saudi Arabia
- SBC (Saudi Building Code)
- UAE
- Dubai Building Code
- Abu Dhabi International Building Code
- Oman
- Oman Municipality regulations
- India
- IS 456
- IS 800
- IS 875
- IS 1893
- IS 13920
- NBC
- International
- Eurocodes
- ACI 318
- AISC 360
- ASCE 7
- British Standards (BS)
How we work
From your drawings to handover
Send drawings and brief
Share architectural drawings, your brief and any soil report on WhatsApp or email.
Scope and quote
We confirm the structural system, governing codes and deliverables, then send a quote.
Analyse and design
Our engineers model, analyse and design the structure, with internal checks on every calculation and drawing.
Review and revisions
You or your consultant review the package. We revise for comments and approval requirements.
Handover in your formats
You receive calculations and drawings in the formats you need, such as PDF, DWG or native model files.
Bending, shear and deflection
Bend the beam
Drag the load along a simply supported 6 m beam and change its size. Reactions, shear and moment follow the statics; the deflection is drawn exaggerated so you can see it.
Drag the arrow along the beam, or use the sliders.
- Reaction RA
- 36.0kN= P(L − a) / L
- Reaction RB
- 24.0kN= P·a / L
- Max moment
- 86.4kN·m= P·a(L − a) / L
- Max deflection
- 8.5mmDrawing exaggerated ×25
Deflection is drawn about 25 times larger than real. Values use EI = 30 000 kN·m², a typical cracked concrete beam, for illustration.
Load 60 kN at 2.40 m from support A. Reaction at A 36.0 kN, at B 24.0 kN. Maximum moment 86.4 kN·m. Maximum deflection 8.5 mm.
In their words
What our clients say
CBG has supported us with structural design, shop drawing and BOQ requirements across our past few projects. It has been a great experience and we look forward to having them onboard for future projects.
Mohamed SamiudeenGeneral Manager, Vision Development Project We've collaborated with CBG for QS, structural and 3D design services on multiple occasions. They have a friendly, energetic team that always delivers quality work — even the minute details from meetings are reflected in their BOQs.
Swapnajith CVFounder & MD, Line & Space Trading & Contracting
On site
Frames that carry every load.

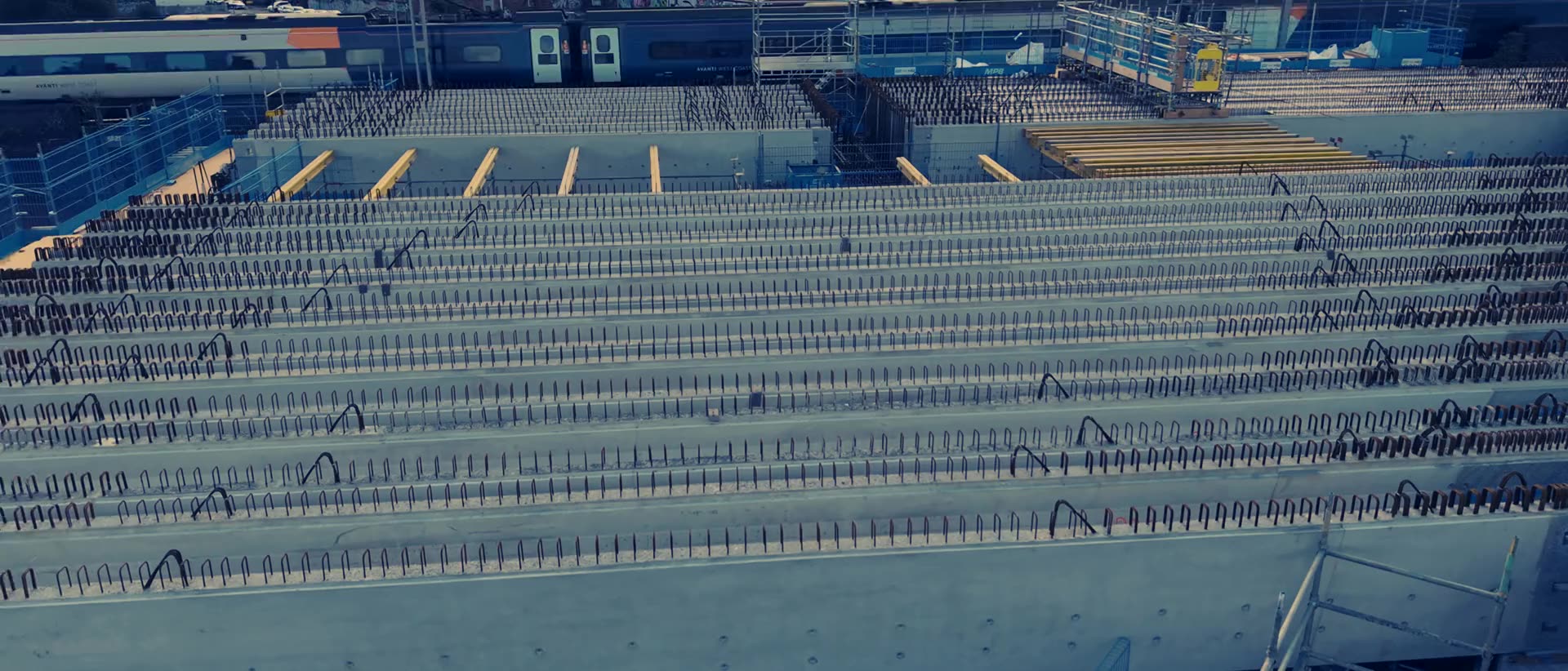

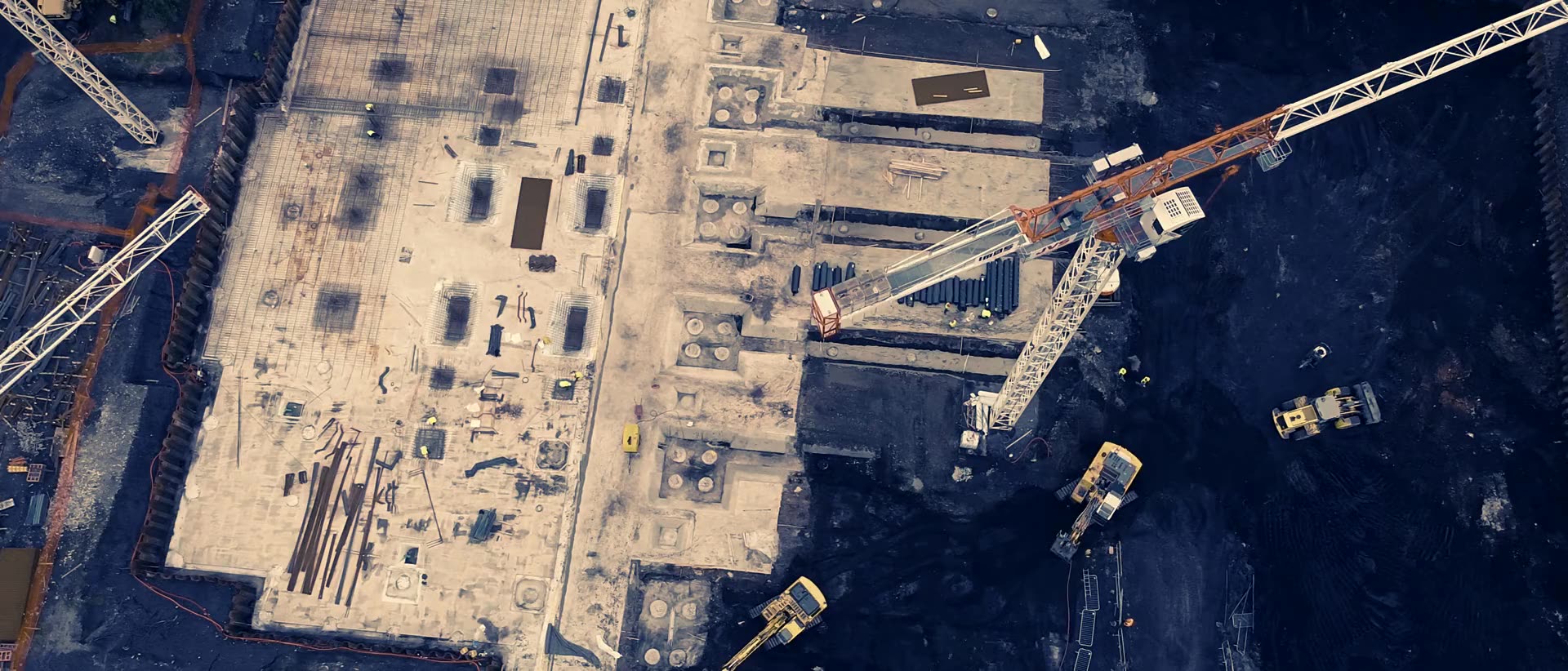

Precast beams laid across a frame. A tower crane over a foundation slab.
